产品概述

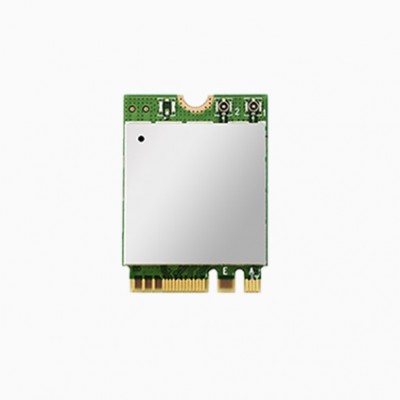

SparkLAN WNFT-238AX(BT) 是 Realtek 的第一款 M.2 WiFi-6 (802.11ax) 模块，由最新的 Realtek Combo 芯片供电，支持完整的 IEEE802.11 ax/ac/a/b/g/n 协议。
WNFT-238AX(BT) 在 MU-MIMO 模式下同时支持 2 个空间流（2T2R，或 2×2）。WNFT-238AX(BT) 采用标准 M.2 A/E 密钥 2230 外形尺寸，可以适应所有预集成 M.2 适配器的现有平台，无需额外的平台设计工作。
软件方面的 WNFT-238AX(BT) 支持 Microsoft Windows 10，操作系统支持使 WNFT-238AX(BT) 能够同时运行 x86 平台和基于 ARM 的平台*。WNFT-238AX(BT)将主要支持STA模式，推荐应用包括数字标牌/POS、平板电脑、笔记本电脑和其他需要高速数据传输、低AP模式需求和温度要求的媒体消费应用（消费和商业用途）。
适用应用
应用包括平板电脑/笔记本电脑/广告机/OTT盒子/IPTV/DVB/STB/DV/IPC/迷你行车记录仪/门铃/智能电视/智能投影仪Pico/VR/AR终端/无线存储/打印机/POS机/车载前置/后置终端无人机/机器人/智能网关等消费类电子产品。
参数特性
STANDARD
|
| WI-FI |
IEEE 802.11ax/ac/a/b/g/n |
| Chipset |
Realtek RTL8852 |
| Host Interface |
WLAN : PCIe |
RADIO
|
| Antenna |
2 x IPEX MHF4 connectors |
| Operating Frequency |
802.11ax/ac/a/b/g/n ISM Band |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz
*Subject to local regulations
|
MODULATIONS
|
| 802.11b |
DSSS (DBPSK, DQPSK, CCK) |
| 802.11g |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11n |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
| 802.11ax |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM，1024-QAM) |
POWER & SENSITIVITY
|
| WiFi |
Power – TX (± 2dBm) |
Sensitivity – RX |
| 11b @11Mbps |
19dBm |
≤ -76dBm |
| 11g @ 54Mbps |
18dBm |
≤ -65dBm |
| 11gn HT20 @ MCS 7 |
17dBm |
≤ -61dBm |
| 11gn HT40 @ MCS 7 |
17dBm |
≤ -61dBm |
| 11a @ 54Mbps |
18dBm |
≤ -65dBm |
| 11an HT20 @ MCS 7 |
17dBm |
≤ -61dBm |
| 11an HT40 @ MCS 7 |
17dBm |
≤ -61dBm |
| 11ac VHT80 @ MCS 9 |
15dBm |
≤ -51dBm |
| 11ax HE20 @ HE 11 |
13dBm |
≤-52dBm |
| 11ax HE40 @ HE 11 |
13dBm |
≤-49dBm |
| 11ax HE80 @ HE 11 |
13dBm |
≤-46dBm |
POWER CONSUMPTION
|
| Continue TX |
860mA |
| Continue RX |
450mA |
ENVIRONMENTAL
|
| Operating Voltage |
DC 3.3V |
| Temperature Range |
-0~ 70°C (Operating) |
-40 ~ 85°C (Storing) |
| Humidity(Non-Condensing) |
5 ~ 90% (Operating) |
5 ~ 90% (Storing) |
SIZE
|
| Dimension (MM) |
30mm(±0.15mm) x 22mm(±0.15mm) x 2.24mm(±0.3mm) |
| Weight |
2.5g |
SOFTWARE
|
| Driver |
Windows 10 |
| Linux(Open Source), Recommend Kernel v5.4+ |
| Security |
64/128-bits WEP, WPA, WPA2, WPA3, 802.1x |
Miscellaneous
|
| Warranty Period |
12 Month |
| HS Code |
8517620050 |
